“Onaylı Donanım” ne demek. Aşağıda yalnızca
Onaylı ya da Sınırlarıyla onaylı olarak listelenen kayıtlar,
ONvidiON sözleşmeleri kapsamında Onaylı Donanımdır. ONvidiON o modelleri test etti, her
birinden bir ünite test laboratuvarında tutuyor ve destek yükümlülükleri onlara bağlanıyor.
Ne demek değil. Topluluk bildirimi, Bilinen sorunlar ya da Desteklenmiyor
olarak listelenen kayıtlar Onaylı Donanım değildir ve
hiçbir destek taahhüdü taşımaz. Yayınlanıyorlar, çünkü başkalarının neyi
çalıştırdığını ve neyin çalışmadığını bilmek, ne alacağınıza karar verirken işe yarıyor.
ONvidiON açık kaynak ve bu listedekinden çok daha fazla donanımda çalışıyor. Onay,
yazılımı çalıştırabilecek donanımlar hakkında değil, ONvidiON'un test ettiği ve
destekleyeceği donanımlar hakkında bir beyandır.
Affiliate links. Some device cards below include a
"Bu cihazı satın al" link that is an affiliate link. If you buy through one, OnVidiOn may earn a
commission at no extra cost to you. This has no bearing on what gets certified or how it is
tested: certification is decided on the bench, never by whether a link earns anything.
Onaylı (5)
ONvidiON tarafından test edildi, çalışıyor ve ONvidiON sözleşmeleri kapsamında destekleniyor. Her birinden bir ünite, gerileme testleri için ONvidiON test laboratuvarında tutuluyor.
Web player, running in an roHtmlWidget under the BrightSign autorun package (autorun.zip: autorun.brs plus st-bridge.js)
En yüksek çözünürlük
1920x1080
Doğrulama tarihi
2026-08-07
Doğrulayan
OnVidiOn
Test edilen sürüm
1.9.33
En düşük ONvidiON sürümü
1.9.33
Üretici destek sonu
Not recorded
The player code is the ordinary web player, unmodified. The BrightSign-specific part is the host around it: autorun.brs owns the widget lifecycle, identity across reboots, recovery from a dead server, and video-mode and multi-output control, with st-bridge.js as the page's half of that contract. This package has to be installed on the player.
BrightSign's HTML widget does not reliably come back from a page reload. That is why the host exists: on deploy the page asks for a restart and autorun.brs tears the widget down and builds a new one, which is a restart the operating system actually performs. Without that host a deploy can darken the panel until someone power-cycles it.
The same hardware can also run the OnVidiOn server itself rather than only the player. That is a separate configuration with its own requirements, listed below.
The OnVidiOn server itself, as a real Node process, with the player running in the widget beside it
En yüksek çözünürlük
1920x1080
Doğrulama tarihi
2026-08-15
Doğrulayan
OnVidiOn
Test edilen sürüm
1.9.36
En düşük ONvidiON sürümü
1.9.36
Üretici destek sonu
Not recorded
This is the whole system on one box: no separate server to host, and the panel keeps working if the network does not.
BrightSign OS 10 is required, and is not optional. The server runs on the Node runtime that ships with OS 10. OS 9 can run the player but cannot run the server.
NVMe or SSD storage is REQUIRED. Do not run the server from an SD card. A server writes continuously, to its database, its write-ahead log, its media library and its logs, and that load will wear out an SD card and take the site down with it. This is why the entry names the XT245, which takes a 128 GB NVMe drive, rather than the Series 5 generally.
Server mode is off unless you ask for it. It listens on port 8181.
Install from the autorun-server.zip and server-payload.zip assets published with each release. The payload installs in two stages; a single combined archive is not usable because the boot-time archive reader does not handle one that large.
Newer than the player configuration, which has been running since 2026-08-07. Treat it accordingly.
The panel is 1280x800. It was tested with 1080p content, which the device downscales to fit, so a 1080p playlist plays correctly but is not shown at full resolution.
Requires OnVidiOn 1.9.4 or later. Earlier Android builds could strand a panel on "waiting for content" after a restart, with no recovery short of clearing the app and re-provisioning (issue #162, fixed 2026-07-10).
OnVidiOn holds no Tizen hardware. This entry rests on user reports and carries no support commitment.
Tizen is not turnkey. There are three install routes and each has a catch.
The released .wgt is unsigned and is for inspection only. Samsung distributor certificates are locked to the DUID of the signer's own panels, so a .wgt we signed would not install on yours.
Native install needs a Samsung certificate tied to each panel's DUID.
The SSSP URL Launcher route works without per-panel signing on your side: the server hosts sssp_config.xml and the panel installs itself, then reinstalls whenever the version bumps.
The simplest route is to point the panel's browser at /player, with no signing at all.
There is no in-app update for this player. A panel keeps its installed build until it is reinstalled.
Requires OnVidiOn 2.0.8 or later. A content security policy added in 2.0.0 black-screened Tizen 5.0 panels and was removed in 2.0.8 (issue #330).
webOS 4.x, 5.x and 6.x, and webOS Signage 22 and later
ONvidiON oynatıcısı
webOS .ipk shell around the web player
En yüksek çözünürlük
Not recorded
Doğrulama tarihi
Not recorded
Doğrulayan
Community
Test edilen sürüm
Not recorded
En düşük ONvidiON sürümü
2.0.8
Üretici destek sonu
Not recorded
Community contributed. No LG panel was available to OnVidiOn, so no unit is held in the lab and this carries no support commitment.
Installed from a USB stick or an SI server. No vendor signature is needed.
Built without LG's SCAP library, which LG's licence does not allow us to redistribute. Power control and self-update therefore need a local build with the LG SDK files in place. The dashboard hides those buttons on a panel that reports it cannot do them.
webOS 3.x and older are below the player's baseline and are shown a compatibility message rather than a black screen.
Android TV hardware in general is not certified. Individual models are listed separately when OnVidiOn has tested them.
With group sync enabled the player warms the next clip on a second video decoder shortly before each item boundary. Some chipsets allow only one decoder at higher profiles, and the second request can reclaim the decoder already playing. The picture holds, no error is raised, and the playlist stops advancing.
Reported on Xiaomi Mi TV P1 panels (issue #333) and fixed in 2.0.8. The chipsets that behave this way have never been identified.
#LED video wall (Colorlight processor + Raspberry Pi)
Üretici
Not recorded
Model numaraları
Colorlight X4, Colorlight X8
Kategori
Tek kartlı bilgisayar
İşletim sistemi
Raspberry Pi OS (Wayland / labwc)
ONvidiON oynatıcısı
Web player in a kiosk browser on a Raspberry Pi 4
En yüksek çözünürlük
The wall's native mode, e.g. 2808x648 (13x3 modules of 216x216)
Doğrulama tarihi
2026-09-22
Doğrulayan
Community
Test edilen sürüm
2.1.5
En düşük ONvidiON sürümü
Not recorded
Üretici destek sonu
Not recorded

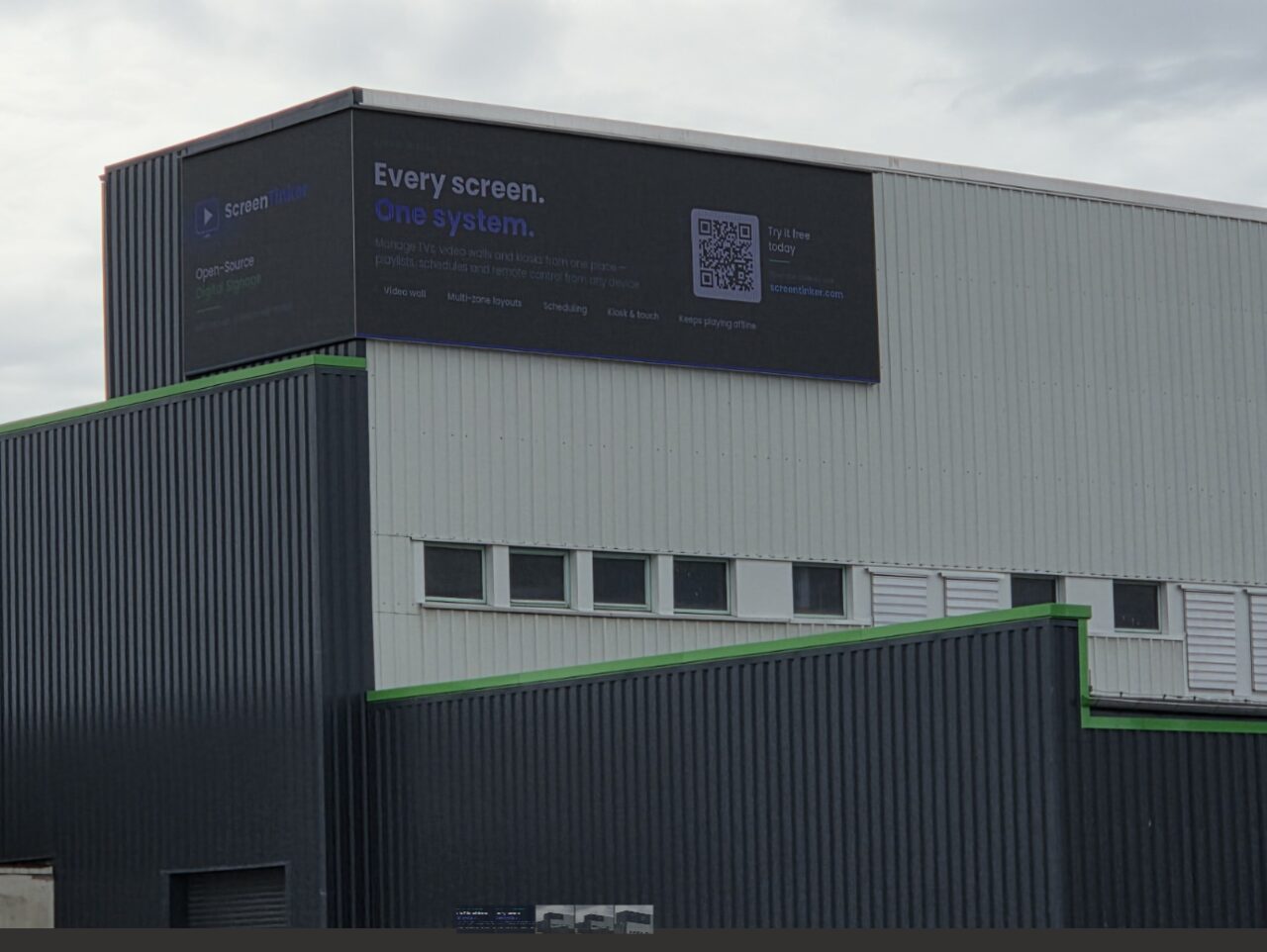

Reported by Watterott electronic GmbH (Leinefelde-Worbis, Germany), who run OnVidiOn on LED walls in production. OnVidiOn holds no LED wall and this entry carries no support commitment.
The LED processor is configured once with the wall's native resolution and advertises it to the player over EDID. The Pi picks it up on boot as if a monitor with that native mode had been plugged in — nothing is configured on the Pi and OnVidiOn needs no LED-wall feature.
⚠️ Android streaming sticks cannot drive one. Fire TV, Google TV Streamer and similar only output from a fixed list of resolutions, so they cannot produce a wall's native mode. Use a Raspberry Pi or a small x86 PC.
Colorlight processors can crop and scale instead, but a 4K-class processor large enough to cover the wall without quality loss costs roughly double, and scaling means no longer driving the native pixel grid.
Brightness, colour calibration and gamma belong to the LED processor and receiving cards, not to OnVidiOn.
To blank a wall out of hours, set a device-level default image rather than putting a black image in the timetable.
Tested with MLS LED modules and Colorlight receiving cards, connected to the processor over HDMI.
Vega player (vpkg). Played on one AFTCA002, then the process died
En yüksek çözünürlük
1920x1080
Doğrulama tarihi
2026-09-24
Doğrulayan
OnVidiOn
Test edilen sürüm
2.1.6
En düşük ONvidiON sürümü
Not recorded
Üretici destek sonu
Not recorded
Vega OS, not Fire OS. The Android APK does not install. The player is vega/ (see docs/vega-player.md): the web player inside an installed WebView.
Played on one AFTCA002 (OnVidiOn 2.1.6, Kepler 1.2): paired, reported 1920x1080, transitions ran, then the process died in-process. Not certified. Do not buy it for a sign until this entry changes.
Crashes on this stick were a compositor abort, not memory: three died on the same libkepler_slatium stack at a video/image boundary, one with 72 MB of CMA free and no memory stall. Drawing a <video> frame for a transition is what trips it, so video boundaries hard-cut and image transitions stay. CMA pressure is real but survivable — measured falling below 5 MB in 21 of 60 samples, bottoming at 668 kB, with no crash. A 13-minute run across a 44-second image/video cycle was clean.
Group sync does not warm a second video decoder. A second decoder is another CMA claim.
1920x1080 is what that AFTCA002 reported. The stick can output 4K, so this may be the panel or the HDMI link, not a device ceiling.
Offline cache worked on that run: a service worker was in control, images cached, and video decoded offline.
No device-owner kiosk, reboot, RTSP, or package self-update. Back does not quit the app, and that is the whole of the lifecycle control.
Vega OS, not Fire OS. The Android APK does not install. The player is vega/ (see docs/vega-player.md): the web player inside an installed WebView.
Not run on an AFTCL001. The 4K Select run is the only evidence, and that stick is not certified either. Do not buy it for a sign until this entry changes.
Same player as the 4K Select. Transitions are declared. Group sync does not warm a second decoder, because that is a second CMA claim. The earlier browser attempt was not reliable.
1080p is the product's output, not a measurement of this app.
No device-owner kiosk, reboot, RTSP, or package self-update. Back does not quit the app, and that is the whole of the lifecycle control.
None. There is no OnVidiOn player for tvOS and none is planned.
En yüksek çözünürlük
Not recorded
Doğrulama tarihi
Not recorded
Doğrulayan
OnVidiOn
Test edilen sürüm
Not recorded
En düşük ONvidiON sürümü
Not recorded
Üretici destek sonu
Not recorded
⚠️ tvOS ships no web view. WKWebView is not in the public tvOS SDK and Apple's Human Interface Guidelines state web views are not supported on tvOS. Every OnVidiOn player is the web player inside a shell, and there is no shell to build here.
An app cannot carry its own engine: tvOS grants no JIT permission, and App Store guideline 2.5.6 requires web-browsing apps to use Apple's WebKit, which tvOS does not offer. Shipping a private web view is what gets apps rejected.
A native player was scoped and declined. It could do images, video, HLS, zones, schedules and proof-of-play; it could not do widgets, HTML bundles, web pages in a zone or picture-in-picture, or YouTube — all of which are HTML.
YouTube is not recoverable. The YouTube app on Apple TV is Google's own native client against their private backend. What Google publishes to third parties is the iframe embed, which their terms require to run in a web view and whose supported platforms are iOS, iPadOS and macOS — not tvOS.
⚠️ Unattended operation requires MDM. Without Single App Mode on a supervised device, an Apple TV sleeps and does not relaunch the app after a power cut. A screen that needs somebody to find the remote is not a digital sign.
No sideloading, and every update passes through App Review — so the release cadence would not be ours.
Use a Raspberry Pi, a small x86 PC, an Android TV box, or a Samsung/LG commercial panel. All cost less, install freely, recover from a power cut by themselves, and run the full player. See docs/tvos-player.md for the full decision record.
This would change if Apple shipped a public web view on tvOS. It would then be the same small shell built for the Vega Fire TV sticks.
Android paneller ve neden oynatıcı artı ekran öneriyoruz
Bugüne kadar hiçbir ticari Android tabela paneli ya da hepsi bir arada ticari ekran
doğrulanmadı. Buraya beyaz etiketli bir Android panelin ilanını elinizde tutarak geldiyseniz,
baktığınız boşluk bu. Bu, o panel hakkında bir yargı değil. ONvidiON'da kimsenin bir tanesini
tezgâha koymadığı anlamına geliyor; dolayısıyla onaylanamaz ve ona hiçbir destek
yükümlülüğü bağlanamaz.
Önerilen yol, HDMI üzerinden bir ticari ekranı süren onaylı bir oynatıcı. ONvidiON'u
çalıştıran parça oynatıcı ve onaylanan parça da o. Ekranın kendisi oynatıcı donanımı
değildir ve onay gerektirmez. HDMI girişi olan her ticari ekran çalışır; onu da
ekranların gerçekten seçildiği şeylere göre özgürce seçebilirsiniz: panel kalitesi, parlaklık,
çalışma saatleri, garanti ve boyut.
Bu ayrım kasıtlı. Ekran seçiminizi açık tutuyor, yazılımı çalıştıran parçayı ucuz ve
değiştirilebilir bırakıyor, ve arızalanan bir oynatıcıyı ekran değişimi değil bir takas
meselesi yapıyor.
Bir cihazı onaylatmak
Belirli bir modelin onaylanması gerekiyorsa ONvidiON desteğine yazın; hangi model ve kaç
ekranın söz konusu olduğunu belirtin. Onaylı olmayan donanımın doğrulanması bayi iş ortakları
için ücretli bir çalışmadır ve sonuç ne olursa olsun burada yayınlanır — testler onu
gösteriyorsa bir Desteklenmiyor kaydı olarak da.
Bu listede olmayan bir şeyi çalıştırıyorsanız ve çalışıyorsa bize söyleyin. Topluluk
bildirimleri memnuniyetle karşılanıyor ve Topluluk bildirimi olarak yayınlanıyor. Bu bir onay
değildir ve öyle olduğu da belirtilir, ama donanım seçen bir sonraki kişiye yardım eder.
